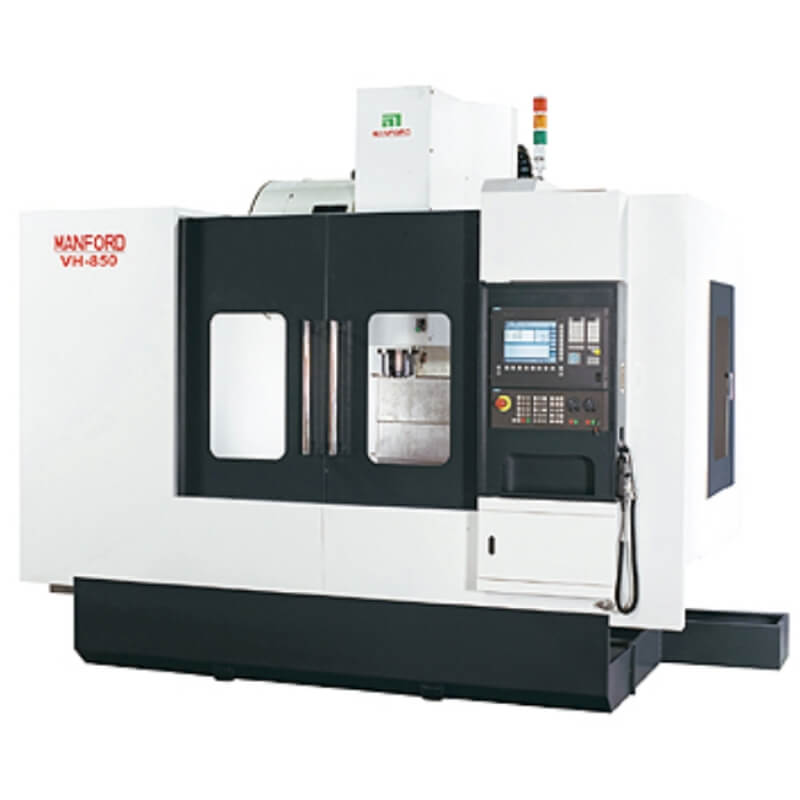

CNC – Machine center MANFORD VH-850
CNC – Machine center MANFORD VH-850
550฿
- Capability and Accuracy : 0.010 to 0.015 mm
- Table Size 850 x 500 x 350 mm. = 1 MC
MACHINE FEATURES
- 10 HP Spindle Motor, BT40 or CAT40 Spindle Taper
- 8000 rpm spindle speed ( Optional 10,000 or 12,000 rpm )
- Super grade Turcite-B On X/Y/Z Slideways
- Hardened & Ground X&Y&Z Slideways
- 40 mm,C3 Double nut precision ballscrews
- Meehanite Casting with annealed & stress relieved
- 100% Laser tested for positioning accuracy & repeatability
- Ball Bar tested for circular interpolation accuracy
- Cam operated Genoa type 16 tools
- Telescopic steel way cover on three axes
- Tool box & Tools
- Coolant System and air blast system
- Central lubrication system, auto power off
- Built-in Quartz work light and Alarm lamp
- Solid box ways construction provides rigidity & accuracy
- Rigid tapping
Specification:
- Table: 19.7” x 39.4” (500 x 1000 mm)
- Longitudinal travel (X axis ): 33.5” (850 mm)
- Cross travel: 20” (510 mm)
- Vertical travel: 22” (560 mm)
- Spindle nose to table top(D): 5.9”-27.6” (150-700 mm)
- Column surface to center of table: 12.6”-32.7” (320-830 mm)
- Load capacity: 990 lb (450 Kg)
- Spindle taper: BT40 or CAT40
- Spindle Speed (r. p.m.): ( 60 Hz ) 8000 rpm
- Transmission of spindle & motor: Belts (ZF Gear box optional)
- Spindle center to column front surface: 22.6” (575 mm)
