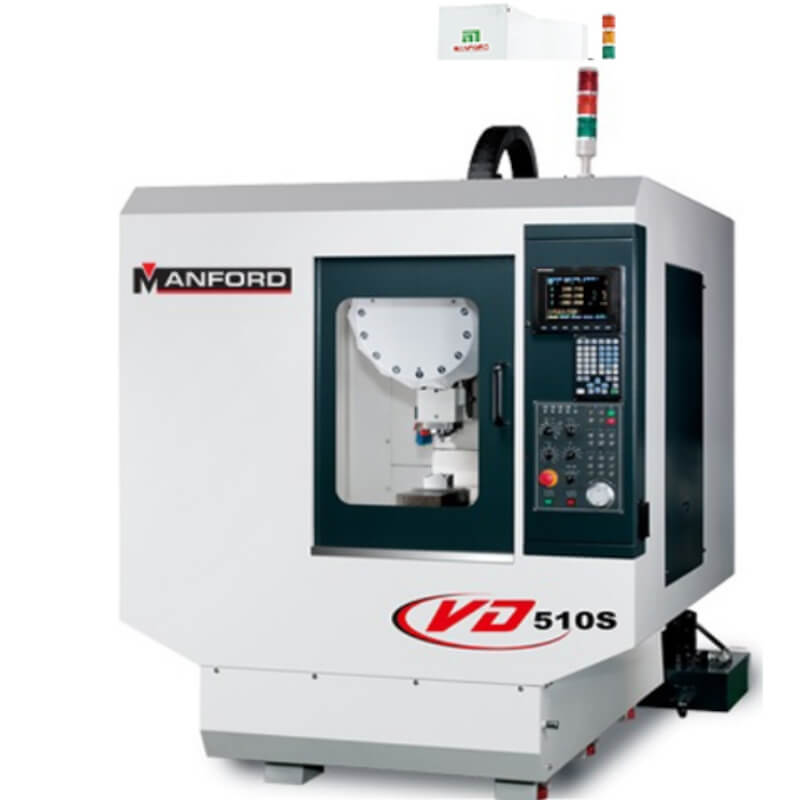

CNC – Machine center MANFORD VD-510S
CNC – Machine center MANFORD VD-510S
550฿
- Capability and Accuracy : 0.010 to 0.015 mm
- Table Size 510 x 350 x 280 mm. = 1 MC
- Front side disc type ATC Multi-link floating arm structure design efficiently shortens tool change time and reduces the vibration. Build-in SENSOR with high distinguishable signal light is designed for easy maintenance. Light weight aluminum alloy but rigid structure of magazine body & tool disc decreases Light weight aluminum alloy but rigid structure of magazine body & tool disc decreases magazine rotating inertia and spindle inertia load. High toughness compound gripper protects spindle during tool change. Individual unit design on grippers allows easy replacement after long period of use or consuming.
- ATC springs and fix bolts Big size alloy springs offer quick & smooth tool change and extend its service life. Fix bolts on each end of the spring are made of titanium alloy, which assures longer service life of ATC.
- High rigidity, high efficient design X & Y axes rapid feed rate is 48 M/min, Z axis is 60 M/min. New disc type ATC remarkably shortens SENSOR reaction time. Tool change time is only 1.6 sec (T-T), 2.5 sec (C-C), 2.8 sec (Opposite Side) by servo motor. (With inverter motor, tool change time is 1.8 sec (T-T), 2.8 sec (C-C), 3.5 sec (Opposite Side).) Rigid casting design provides sufficient rigidity during high speed movement and heavy cutting, which is not only suitable for drilling & tapping but also for engraving & milling.
- Spindle motor With new type Mitsubishi low inertia spindle motor, spindle response time is greatly shortened. It takes only 1.0 second for spindle to run up to 12000 rpm from 0 rpm. During continuous & repeating acceleration or deceleration
