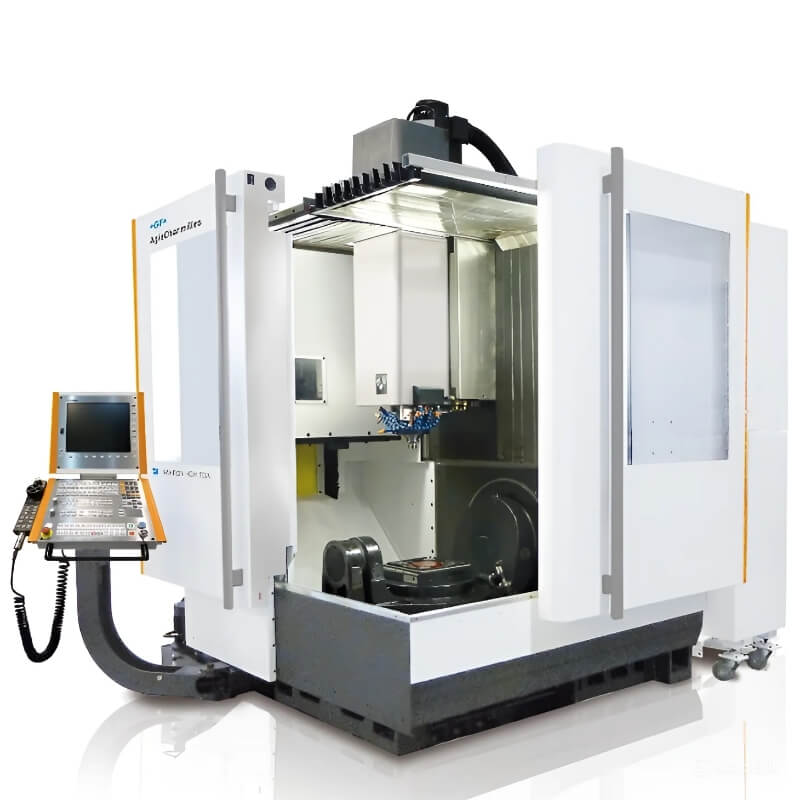

MIKRON HEM 500U
MIKRON HEM 500U
550฿
has a 12,000 rpm ISO-B40 spindle and 30 tool magazine that provides a 2 sec chip-to-chip time. A 20,000 rpm spindle and 60 tool changer are available. Axis travels in X, Y and Z measure 19.7 in (500 mm), 17.7 in (450 mm) and 15.7 in (400 mm), 1 MC.
Unleash your full potential
The range of solutions is a second-generation successor to the HEM U range. It brings greater machining capacity and better machining performance to a more robust machine base. With the large swivel range from - 65° to + 120° and the ability to load heavy parts up to 450 kg onto the tilting, swiveling table, these solutions U allows users to manufacture a wider range of parts and tools than any other machine currently on the market. It is based on a stiff and stable C-frame construction made out of cast iron. Thanks to large guideways, a double side-supported rotary table and an optimum chip removal rate, this machine delivers quality on parts and reliable operations. Whether you are a job shop or a part producer, these machines are the right solutions to help you tackle the many different requirements coming from the automotive, energy and power generation, and general mechanics industries.
